Junistar Lux Square
Junistar Lux Square Black 580lm 2700K Ra 98 DALI
Article code:
902605
EAN:
7021989026051
Download
Electrical
Wattage:
7W
System wattage:
8W
Voltage:
220-240V
Frequency (Hz):
50/60Hz
Max. luminaires per circuit breaker:
B10: 105, B16: 168, C10: 105, C16: 168
Light technic
Type of light source:
LED
Luminous flux:
580lm
Efficacy:
73 lm/W
Colour temperature:
2700K
Colour rendering (CRI):
Ra 98
MacAdams factor:
SDCM: 1
Lifetime:
L90/B10>100,000
Light distribution:
Direct
Optic:
Reflector
Beam angle:
42°

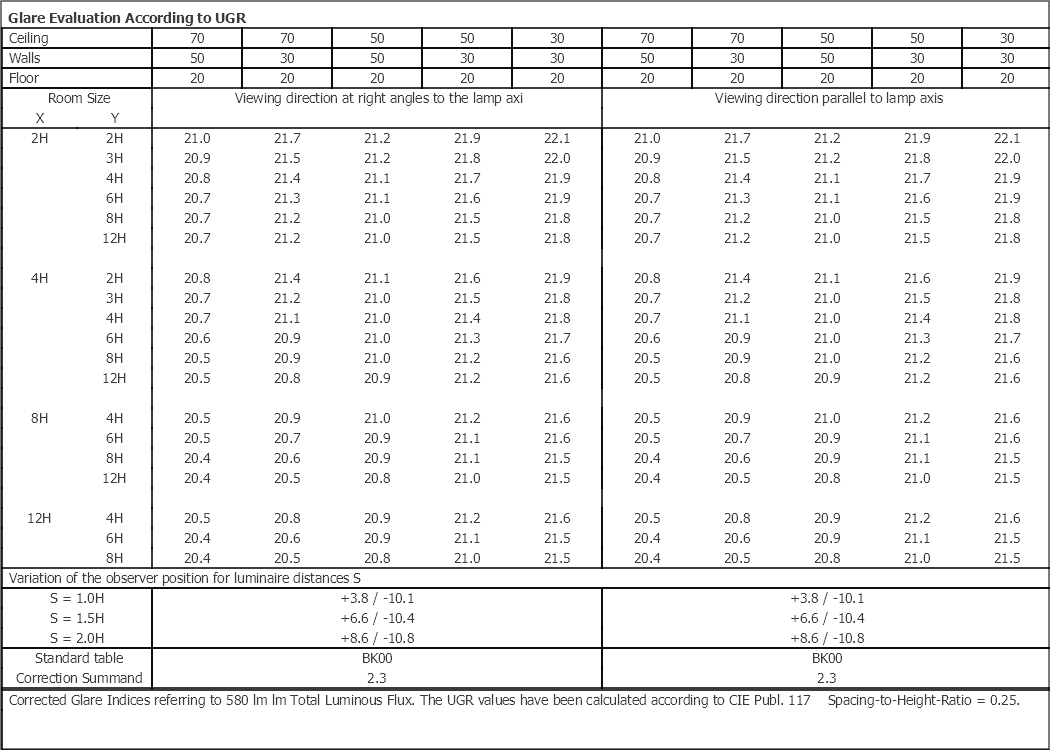

UGR:
UGR<22
Control/Dimming
Type:
DALI
Protection
Luminaire class:
Class II SELV
IP Class:
IP44
Energy and approvals
Contains light source of energy class:
F
Breeam:
Fulfils Hea 01 for flicker free lighting
BVB:
Yes
Materials and finish
Housing:
Aluminium
Colour:
Black (RAL 9004)
Optics:
Tempered glass
Mounting/Connection
Mounting:
Recessed, Indoor
Connection:
5 pol Linect / screwless terminal block
Dimensions
Length (mm) L:
95
Width (mm) W:
95
Height (mm) H:
50
Cut-out (mm):
83
Ceiling void depth (mm):
48
Weight (kg) gross/net:
0.402 / 0.335
Packaging
Packing dimensions (mm):
130 x 115 x 75
