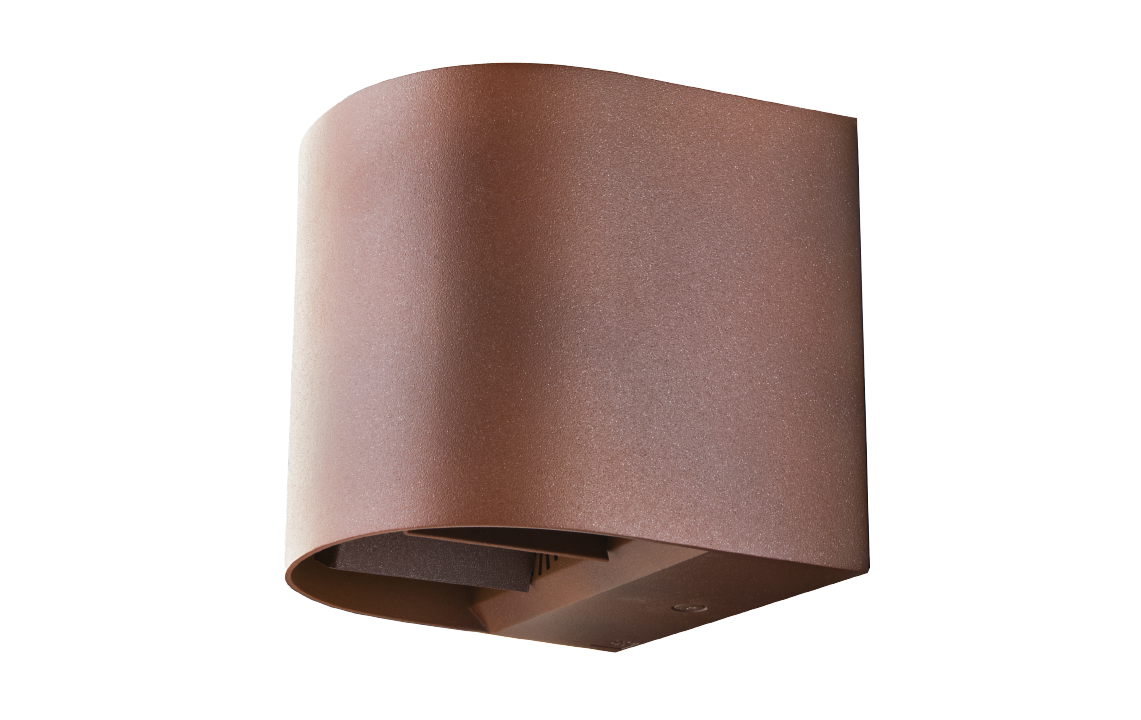

Artes Round

Artes Round Corten 340lm 3000K Ra>80 Trailing edge dimming

Article code:
641735
EAN:
7021986417357
5 years 10 years
Add to brochure Remove from brochure
Electrical
System wattage:
8W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 90, B16: 150, C10: 90, C16: 150

Light technic
Type of light source:
LED
Luminous flux:
340lm
Efficacy:
43 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B20>60,000
Optic:
Lens

Control/Dimming
Type:
Trailing edge dimming

Protection
Luminaire class:
Class II

Energy and approvals
Contains light source of energy class:
F

Materials and finish
Housing:
Aluminium
Optics:
UV-stabilized polycarbonate

Mounting/Connection
Mounting:
Surface, Indoor / Outdoor
Connection:
Screwless terminal block

Dimensions
Length (mm) L:
120
Width (mm) W:
120
Height (mm) H:
120
Weight (kg) gross/net:
0.875 / 0.809

Packaging
Packing dimensions (mm):
125 x 125 x 135

Artes Round Corten 340lm 3000K Ra>80 Trailing edge dimming Artes Round Corten 340lm 3000K Ra>80 Trailing edge dimming Artes Round Corten 340lm 3000K Ra>80 Trailing edge dimming
